Custom PCB fabrication and 3D printing made for students, engineers, and makers on both sides of the border. Same-day lead time and fast shipping across El Paso and Ciudad Juárez.
No more waiting 2 weeks from China. / Sin esperar 2 semanas desde China.

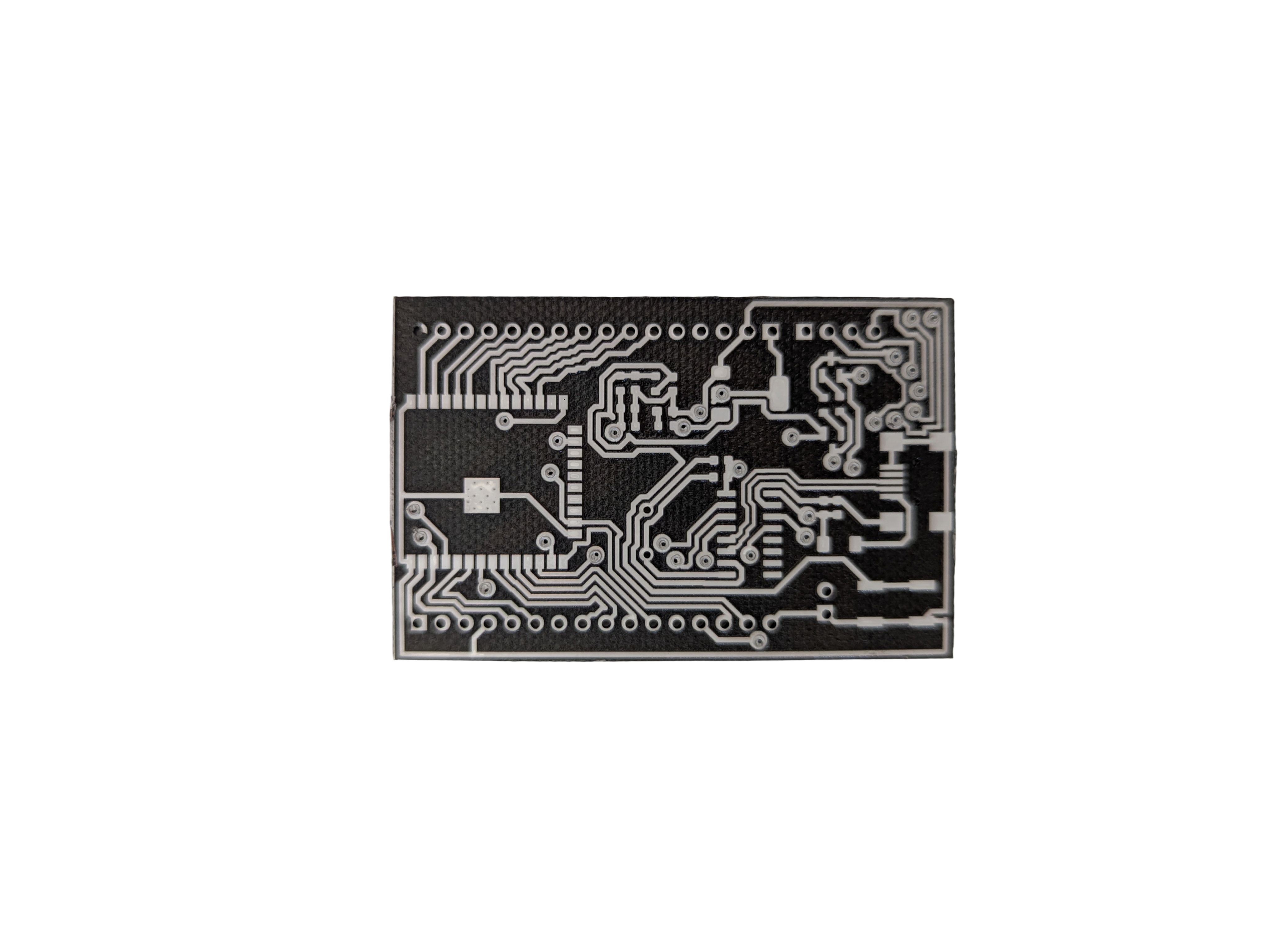

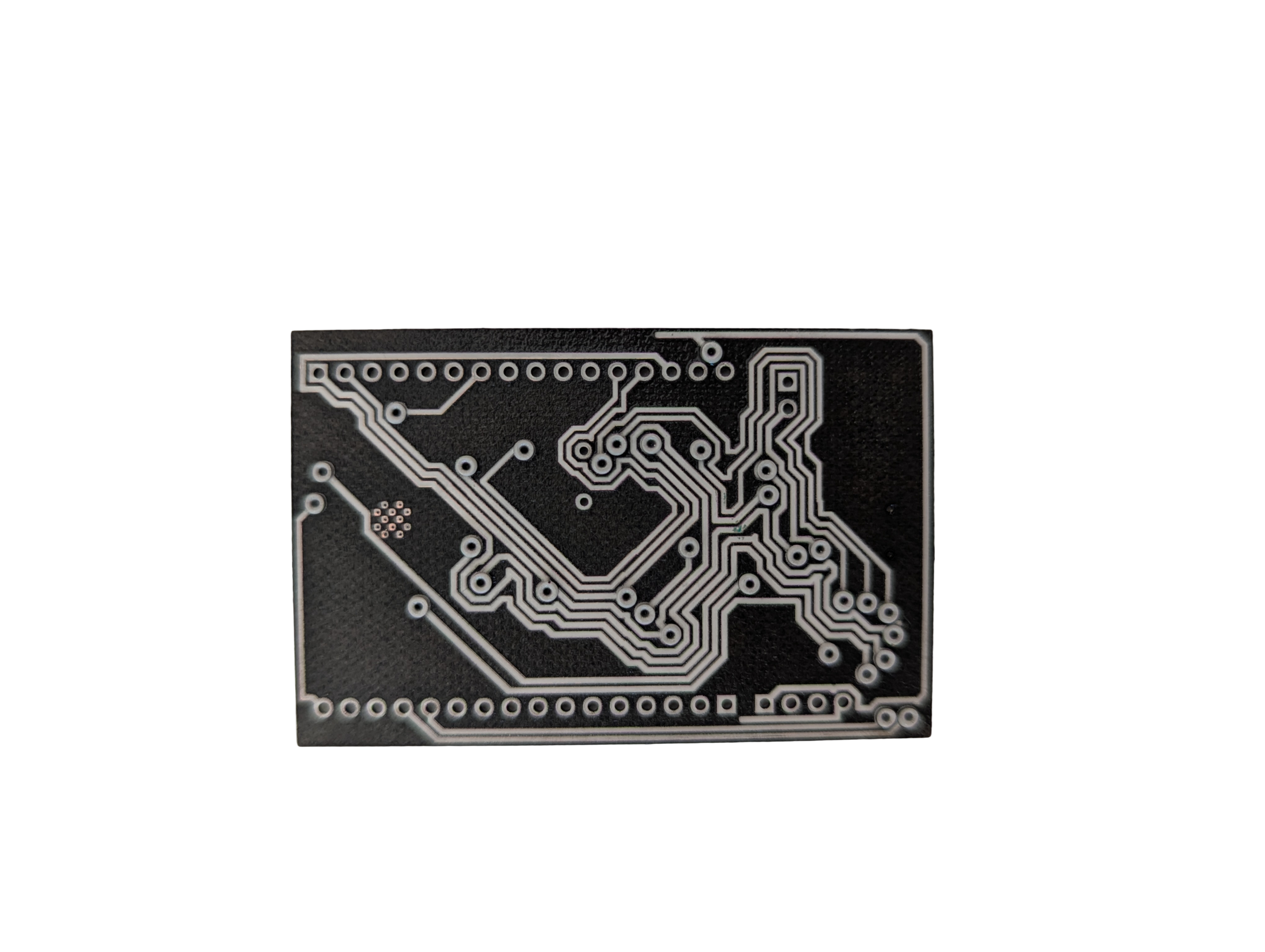

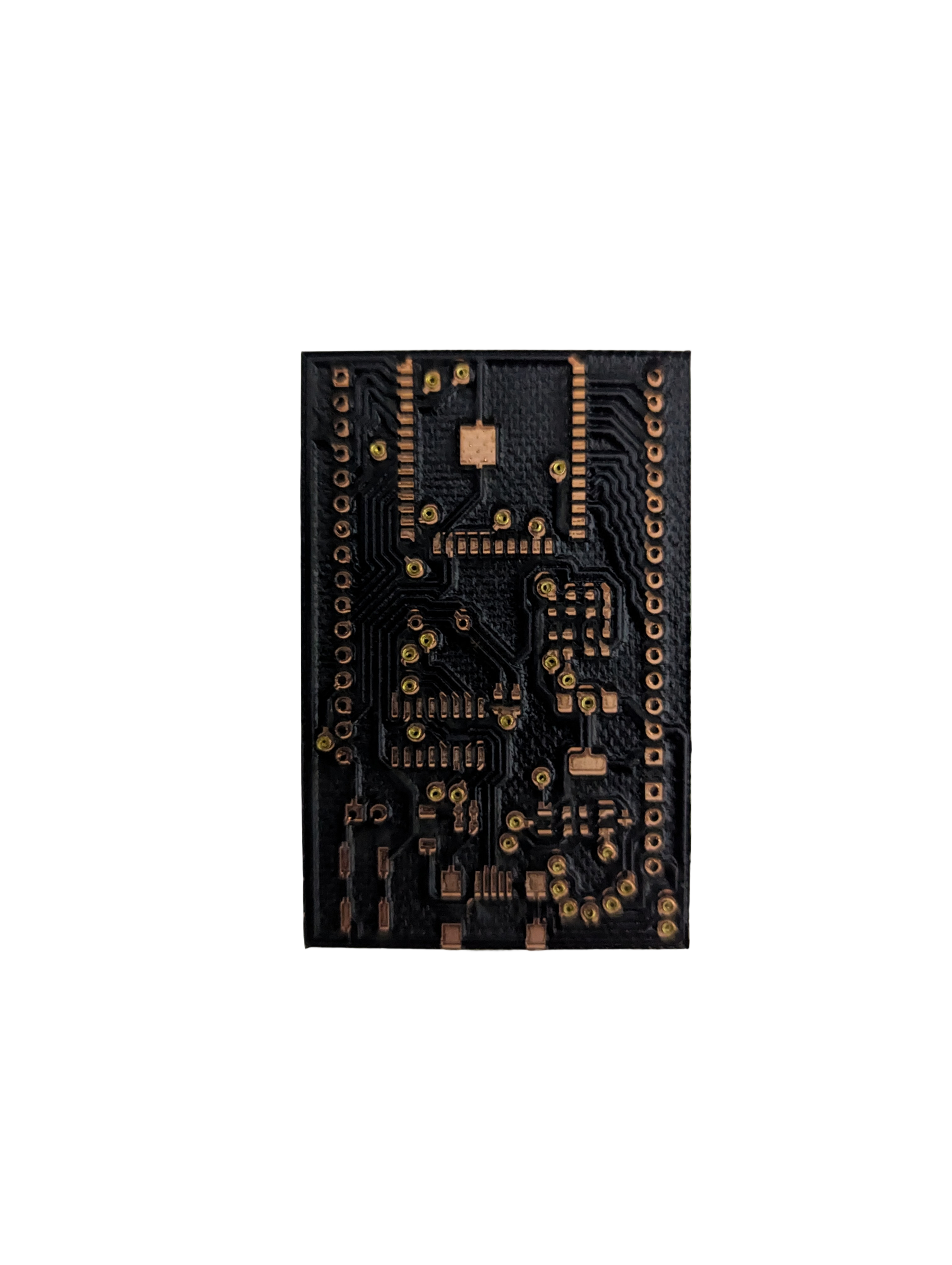

Laser-cut 1 or 2-layer FR4 boards with chemical tin finish and multi-color solder mask. Ideal for prototypes, class projects, and early-stage products. Send your Gerbers and we'll fabricate and deliver locally — same day.
Enclosures, jigs, brackets, and custom parts to complement your PCB. Perfect when you need a physical housing the same day you get your board.
Laser-cut stainless steel and polyimide stencils for accurate solder paste application. Sized to your PCB and paste layer.
Hand and machine-assisted assembly for prototype runs. Bring your bare board and BOM, take home a finished PCBA.
| Layers | 1 or 2 |
| Min Trace / Space (≤70×70 mm) | 10 / 20 mil (min) |
| Min Trace / Space (≤110×100 mm) | 10 / 25 mil (min) |
| Min Drill / Via | 0.9 mm (manual) |
| Annular Ring | 1.9 mm for vias (fixed) · any size for THT |
| ⚠ Via annular ring is fixed at 1.9 mm — vias with larger or smaller rings cannot be produced. THT annular rings have no restriction. | |
| ⚠ We do not fabricate plated through-hole tunnels — a via is the only effective tunnel between layers. | |
| Board Thickness | 1.6 mm |
| Copper Weight | 1 oz |
| Surface Finish | Chemical tin |
| Solder Mask | Multiple colors available |
| Silkscreen | Black or white (depends on mask color) |
| Max Board Size | 110×100 mm (max) |
| Lead Time | Same day (El Paso / Juárez) |
| ⚠ Carbonization removal (sandpaper) for holes >0.8 mm diameter: +$2.00 per board. | |
JLC and PCBWay are 2-3 weeks away. We're in your city. Get your board today and iterate tomorrow.
Need 1 board to test your design? No problem. We don't require large runs.
We speak engineer — in English and Spanish. Pickup available on both sides.
Your files are reviewed by an ECE engineer — not just run through automation. DFM feedback included.
Questions about your design? Need a DFM review before ordering? Reach out via WhatsApp or email — we'll get back to you fast.
